HDMI Test Report

Overall Results:2 of 9 Tests Failed

Test Configuration Details
Device Description
HDMI Test TypeTMDS Physical Layer Tests
HDMI Specification2.0
Test Session Details
Infiniium SW Version04.50.0008
Infiniium Model NumberDSOX93204A
Infiniium Serial NumberMY53180105
Application SW Version1.99.9025
Debug Mode UsedYes
Probe (Channel 1)Model: 1169A Serial: US44002033 Head: N5380A/B Atten: Not Calibrated, Using Default Atten (2.1036E+000) Skew: Not Calibrated, Using Default Skew
Probe (Channel 2)Model: 1169A Serial: US48470614 Head: N5380A/B Atten: Not Calibrated, Using Default Atten (2.0989E+000) Skew: Not Calibrated, Using Default Skew
Probe (Channel 3)Model: 1169A Serial: US44000715 Head: N5380A/B Atten: Not Calibrated, Using Default Atten (2.2949E+000) Skew: Not Calibrated, Using Default Skew
Probe (Channel 4)Model: 1169A Serial: US44000259 Head: N5380A/B Atten: Not Calibrated, Using Default Atten (2.2029E+000) Skew: Not Calibrated, Using Default Skew
Last Test Date2013-09-09 09:20:19 UTC -07:00

Summary of Results

Margin Thresholds
Warning< 2 %
Critical< 0 %

Pass# Failed# TrialsTest NameActual ValueMarginSpec Range
017-9: Clock Jitter179 mTbit28.4 % VALUE <= 250 mTbit
017-4: Clock Rise Time89.912 ps19.9 % VALUE >= 75.000 ps
017-4: Clock Fall Time95.420 ps27.2 % VALUE >= 75.000 ps
017-8: Clock Duty Cycle(Minimum)49.28023.2 % >=40%
017-8: Clock Duty Cycle(Maximum)50.52015.8 % <=60%
017-10: D0 Mask Test0.00050.0 % No Mask Failures
017-10: D0 Data Jitter175 m41.7 % <=0.3Tbit
117-4: D0 Rise Time70.240 ps-6.3 % VALUE >= 75.000 ps
117-4: D0 Fall Time68.336 ps-8.9 % VALUE >= 75.000 ps


Report Detail

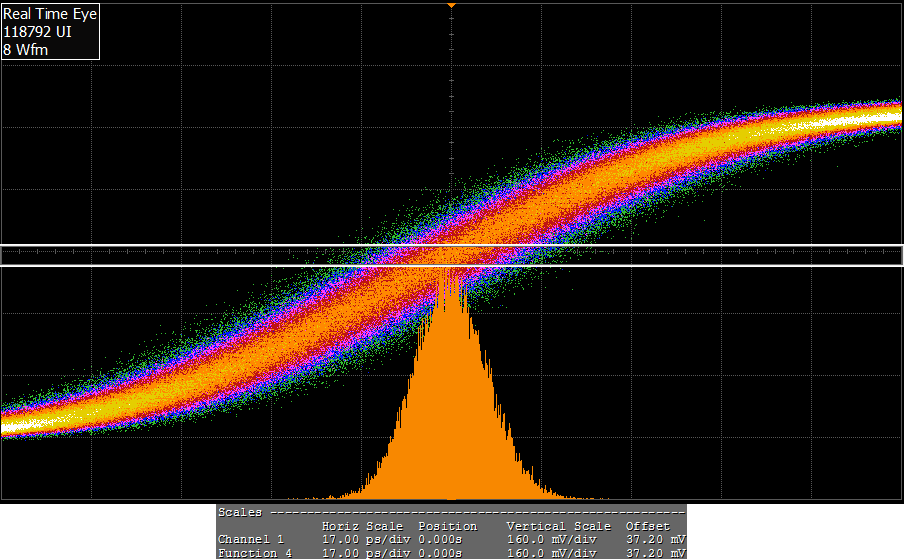

7-9: Clock Jitter Reference: Test ID 7-9
Test Summary: Pass Test Description: 2 Channels Connection Model: TMDS differential clock jitter must not exceed 0.25*Tbit, relative to the ideal Recovery Clock. For compliance, the DUT should output 27MHz(or 25MHz), 74.25MHz, 148.5MHz, and 222.75MHz for testing.
Test Limits:<= 250 mTbitClock Jitter179 mTbit
Result Details:
Result Details
HDMIAutomationConfigTiming C 2Test Frequency(MHz)296.970# Edges16.000000000 MTbit(ps)336.734Clock Jitter(ps)60.440
Trial 1

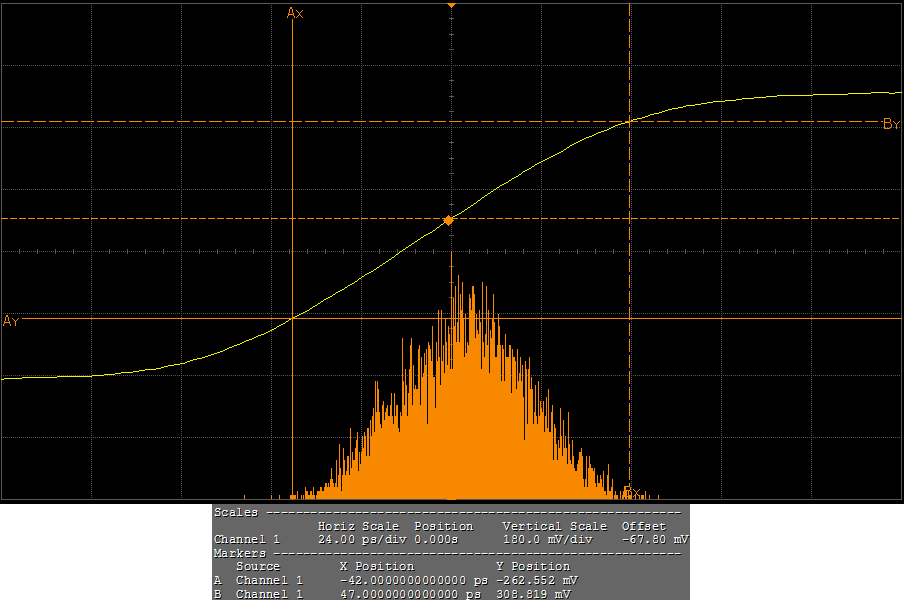

Trial 1: Clock Jitter

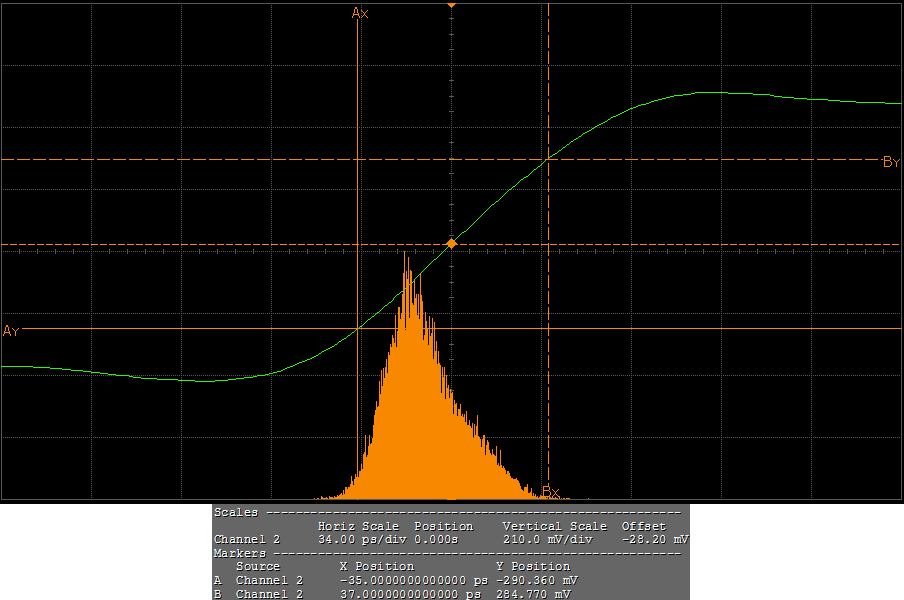

7-4: Clock Rise Time Reference: Test ID 7-4
Test Summary: Pass Test Description: 2 Channels Connection Model: The transition time is defined as the time interval between the normalized 20% and 80% amplitude levels. For compliance, the DUT should output the highest supported pixel clock frequency during the test.
Test Limits:>= 75.000 psRaw Clock Transition Time89.912 ps
Result Details:
Result Details
HDMIAutomationConfigTiming C 2Test Frequency(MHz)296.970Upper Threshold(%)80.000Lower Threshold(%)20.000# Edges11.001000 k
Trial 1
Trial 1: Raw Clock Transition Time

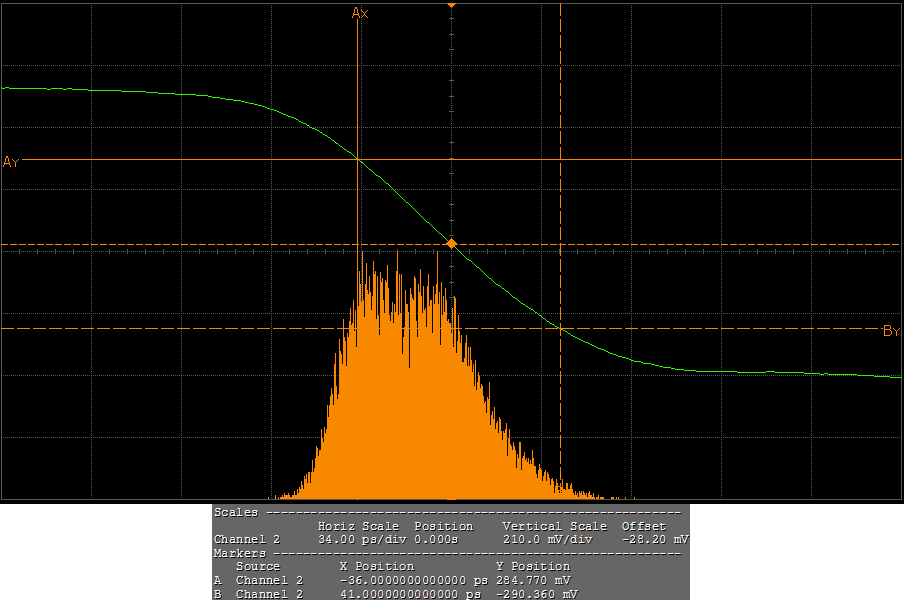

7-4: Clock Fall Time Reference: Test ID 7-4
Test Summary: Pass Test Description: 2 Channels Connection Model: The transition time is defined as the time interval between the normalized 20% and 80% amplitude levels. For compliance, the DUT should output the highest supported pixel clock frequency during the test.
Test Limits:>= 75.000 psRaw Clock Transition Time95.420 ps
Result Details:
Result Details
HDMIAutomationConfigTiming C 2Test Frequency(MHz)296.970Upper Threshold(%)80.000Lower Threshold(%)20.000# Edges11.001000 k
Trial 1
Trial 1: Raw Clock Transition Time

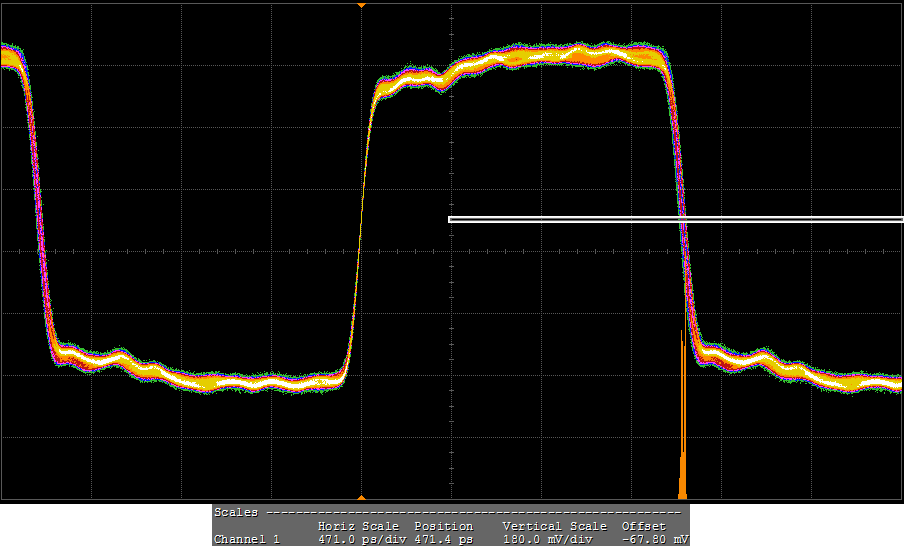

7-8: Clock Duty Cycle(Minimum) Reference: Test ID 7-8
Test Summary: Pass Test Description: 2 Channels Connection Model: Clock duty cycle must be at least 40% and not more than 60%.The Source shall meet the AC specifications in Table 4-13 across all operating conditions specified in Table 4-11. For compliance, the DUT should output the highest supported pixel clock frequency during the test.
Test Limits:>=40%Clock Duty Cycle Minimum49.280
Result Details:
Result Details
HDMIAutomationConfigTiming C 2Test Frequency(MHz)296.970# Edges10.000000 kTdutyMIN(ns)1.659
Trial 1
Trial 1: Clock Duty Cycle Minimum

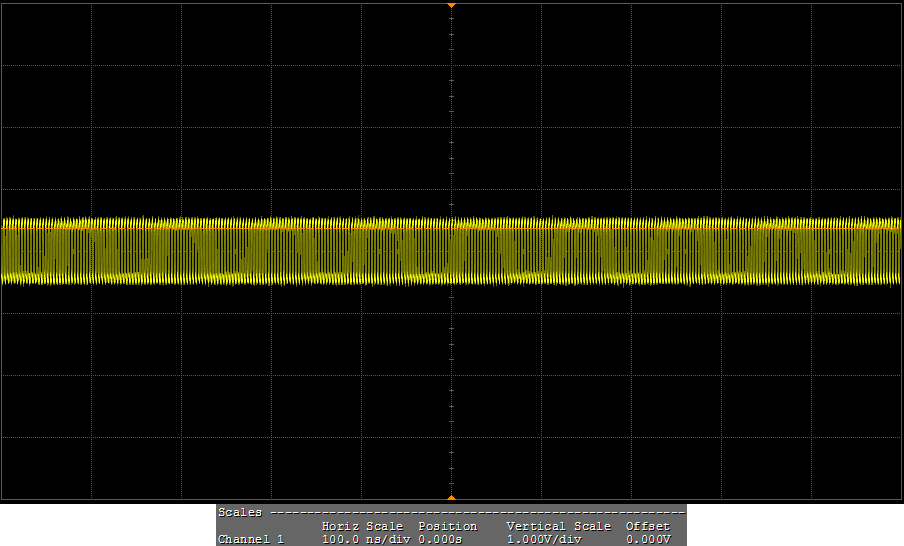

7-8: Clock Duty Cycle(Maximum) Reference: Test ID 7-8
Test Summary: Pass Test Description: 2 Channels Connection Model: Clock duty cycle must be at least 40% and not more than 60%.The Source shall meet the AC specifications in Table 4-13 across all operating conditions specified in Table 4-11. For compliance, the DUT should output the highest supported pixel clock frequency during the test.
Test Limits:<=60%Clock Duty Cycle Maximum50.520
Result Details:
Result Details
HDMIAutomationConfigTiming C 2Test Frequency(MHz)296.970# Edges10.000000 kTdutyMAX(ns)1.701
Trial 1
Trial 1: Clock Duty Cycle Maximum

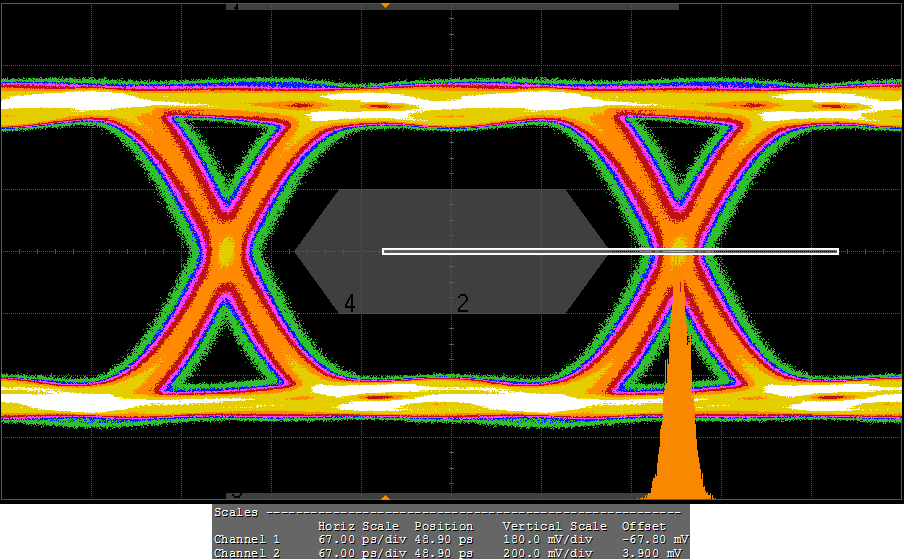

7-10: D0 Mask Test Reference: Test ID 7-10
Test Summary: Pass Test Description: For all channels under all operating conditions specified in Table 4-11 . The Source shall have output levels at TP1, which meet the normalized eye diagram requirements.
Test Limits:No Mask FailuresTotal # failures0.000
Result Details:
Result Details
HDMIAutomationConfigTiming C 2Maximum Margin0.000000000000 sMaximum Margin (Vertical)0.000000000000 VEye Width(ps)277.680Eye Height(mV)719.350Data Lane AD0Test Frequency(MHz)296.970Mask Moved(ps)0.000# Acquisitions Point16.000000000 MTbit(ps)336.695RightJitterData(Tbit)175 mLeftJitterData(Tbit)175 mRightJitterData(ps)58.810LeftJitterData(ps)58.810Differential Swing Voltage(V)959 m
Trial 1
Trial 1: Total # failures

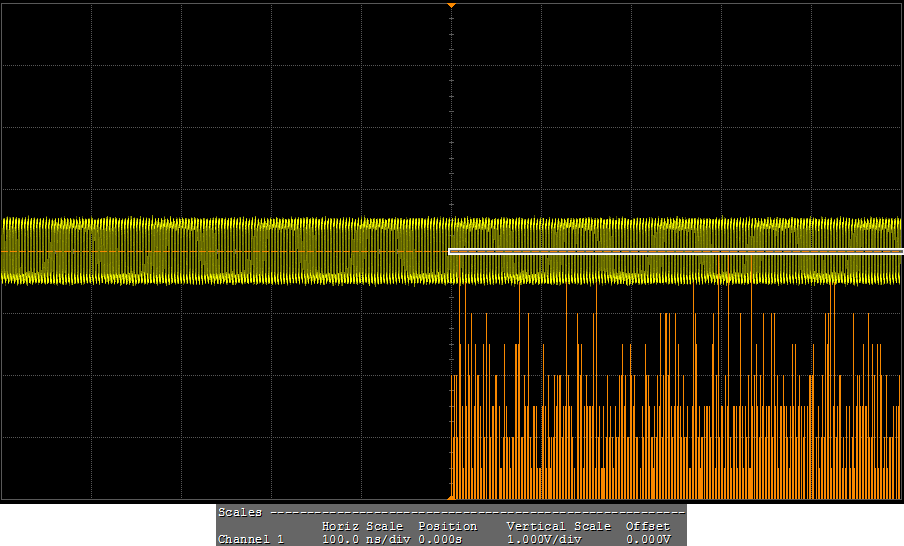

7-10: D0 Data Jitter Reference: Test ID 7-10
Test Summary: Pass Test Description: For all channels under all operating conditions specified in Table 4-11 . The Source shall have output levels at TP1, which meet the normalized eye diagram requirements.
Test Limits:<=0.3TbitTbitCheck175 m
Result Details:
Result Details
HDMIAutomationConfigTiming C 2Data Lane AD0Test Frequency(MHz)296.970Mask Moved(ps)0.000# Acquisitions Point16.000000000 MTbit(ps)336.695RightJitterData(Tbit)175 mLeftJitterData(Tbit)175 mRightJitterData(ps)58.810LeftJitterData(ps)58.810Differential Swing Voltage(V)959 m
Trial 1
Trial 1: TbitCheck

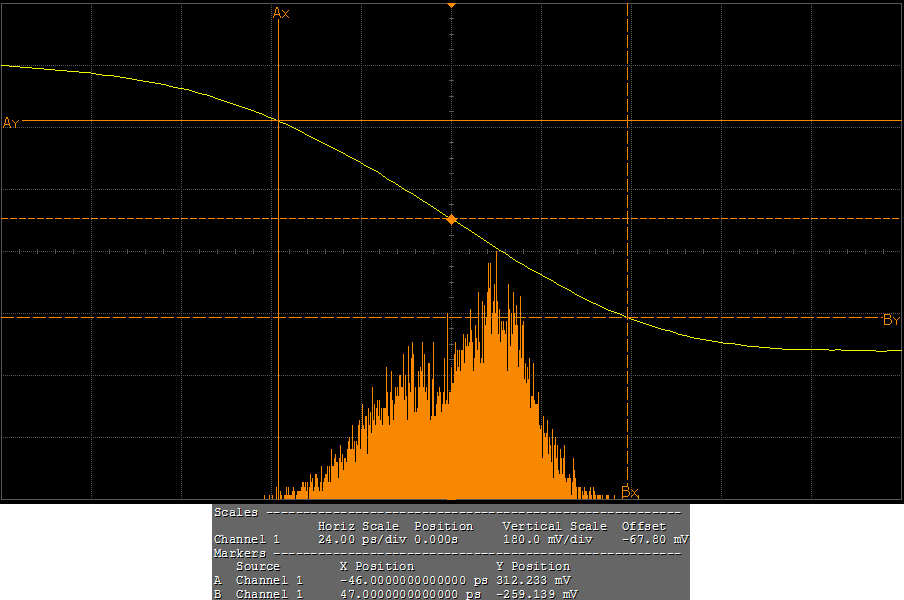

7-4: D0 Rise Time Reference: Test ID 7-4
Test Summary: FAIL Test Description: The transition time is defined as the time interval between the normalized 20% and 80% amplitude levels. For compliance, the DUT should output the highest supported pixel clock frequency during the test.
Test Limits:>= 75.000 psTransition Time70.240 ps
